2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned

Name: 24G 58G 10dbi eightdirectional ring array directional antenna airborne vehiclemounted ground station suppression interference for unmanned
Brand: Leenz
Price: 1 USD

Buy cheap 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned product

Model Number : LZANT-11726-A

VSWR : <1.7

Supply Ability : 50 per day

Payment Terms : T/T

Delivery Time : 15 days

Brand Name : Leenz

Frequency : 2400-2500MHz; 5180-5850MHz

MOQ : 10

Certification : RoHs

Peak Gain : 10dBi

Place of Origin : China

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	2400-2500MHz	5150-5850MHz
S.W.R.	<= 1.7	<= 1.7
Antenna Gain	10dBi	10dBi
Polarization	V	V
Horizontal Beamwidth	70±10°	70±10°
Vertical Beamwidth	40±5°	40±5°
Impedance	50Ohm	50Ohm
Max. Power	100W	100W
B. Material & Mechanical Characteristics
Connector Type	16*SMA-J
Dimension	φ261*261±2mm
Radome material	Aluminum alloy + PCB
Weight	1.4Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
Port 2.4G
2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned
Port 5.8G

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)	Efficiency(%)	Frequency(MHz)	Gain(dBi)	Efficiency(%)
2400	9.9	73.0	5150	9.6	71.9
2410	9.9	72.5	5250	9.6	73.4
2420	9.9	72.3	5350	10.0	72.7
2430	9.8	72.5	5450	10.3	78.7
2440	9.8	73.1	5550	10.0	69.9
2450	9.8	73.1	5650	9.8	68.8
2460	9.8	73.3	5750	9.8	69.8
2470	9.8	74.5	5850	10.2	69.3
2480	9.8	74.6
2490	9.8	74.1
2500	9.8	74.1

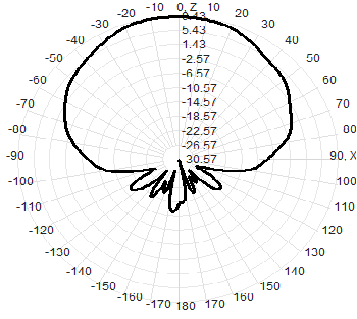

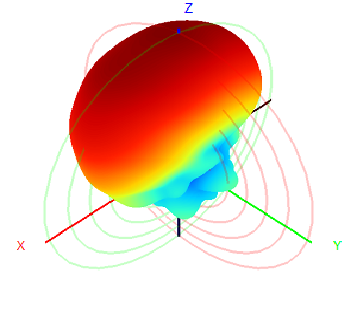

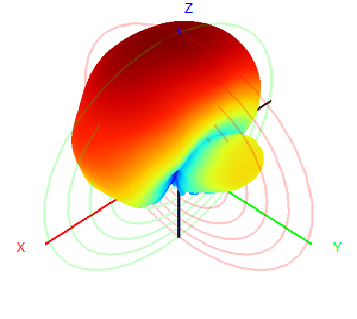

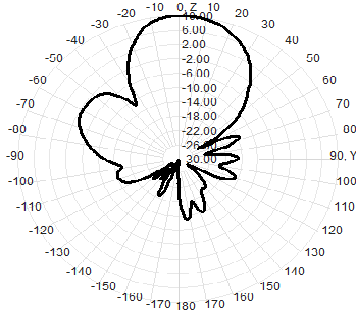

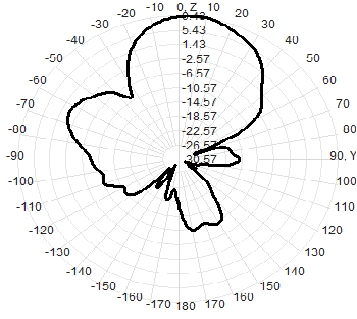

2.3 Radiation Pattern

Port1-8	3D	2D-Horizontal	2D-Vertical
2400MHz
2450MHz
2500MHz

Port 9-16	3D	2D-Horizontal	2D-Vertical
5150MHz
5550MHz
5850MHz
